hot-selling plastic cup injection molding machine

FOB Reference Price:Get Latest Price
US $21,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
injection molding
Style:
Horizontal
Brand Name:
Longsheng
Model Number:
LSF208
Place of Origin:
Jiangsu, China (Mainland)
Plastic Type:
Thermoplastic
Automatic:
Yes
Injection Weight:
347-518gr
Injection Rate:
170-257g/s
Clamping Force:
208T
Opening Stroke:
500mm
Power(W):
15kw
Certification:
ISO9001 SGS
After-sales Service Provided:
Engineers available to service machinery overseas
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export packing
Port
Shanghai Port
Lead Time :
30days

Specifications

injection weight:274-428gr
clamp force:2080KN
tie bar sizes:510*510mm
energy saving
The machine can make different size cups


We are professional manufacturer of  hot-selling  plastic cup injection molding machine   clamping  from 600 to 32000KN, weight from 68g to 40570g can make different cups.
Machine type:
1) servo energy-saving
2)variable pump
3) high speed etc
suitable for all kinds of plastic products production.

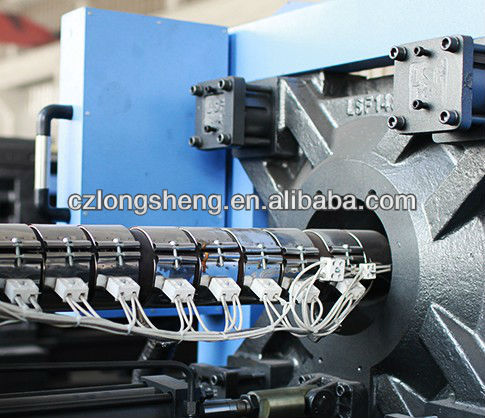

INJECTION UNIT



Unit

LSF-208

A

B

C

Screw Diameter

Mm

45

50

55

Screw L/D Ratio

L/D

22.2

20

18.2

Short Size

Cm3

381

471

569

Injection weight

G

347

428

518

oz

12.2

15.1

18.2

Injection Rate

g/s

170

210

254

Plasticizing capacity

g/s

19

23.2

28.7

Injection Pressure

Mpa

229

186

154

Screw Speed

Rpm

0-190

Injection Sroke

mm

240









CLAMPING UNIT

Clamp Force

KN

2080

Space Between Tie Bars

mm

510*510

Toggle Stroke

mm

500

Max. Mold Height

mm

530

Min. Mold Height

mm

200

Ejector Stroke

mm

150

Ejector Tonnage

KN

62

Ejector Number

P

5





OTHERS

Max. pump Pressure

Mpa

16

Pump motor powder

Kw

18.5

Heater Power

Kw

14.25

Machine Dimension(L*W*H)

M

5.3*1.4*1.95

Machine Weight

T

6.9

Oil Tank Capacity

L

380

Hopper Volume

Kg

50
